Good Cul-De-Sacs and Bad Ones

The Sustainable Northampton Plan disfavors cul-de-sacs. Page 51 states:

Avoid creating cul-de-sacs and dead ends when possible and instead create a network of streets. Dead end streets, while desirable to some residents, add significantly to the delivery of city services and increases traffic flows to other local streets…

Kohl Construction’s latest condo proposal for North Street contains two cul-de-sacs:

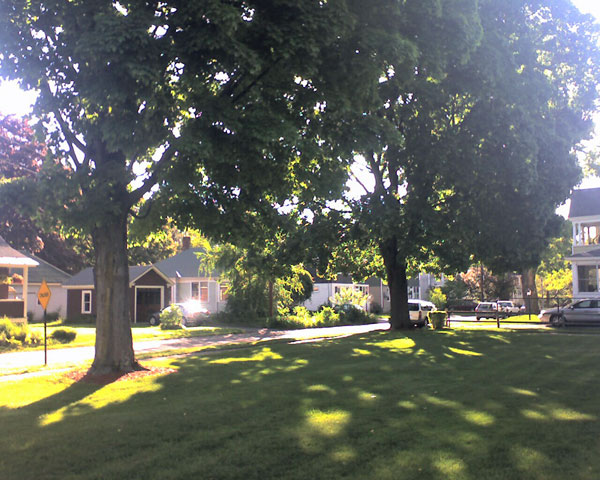

In the past, we have objected to the Sustainable Northampton Plan’s aversion to cul-de-sacs as overbroad. Some cul-de-sacs are handsome, safe, thriving micro-neighborhoods that are well integrated with their larger surroundings. Northern Avenue strikes us as a good example of a healthy cul-de-sac:

What makes some cul-de-sacs good and others bad?

Professor Bill Hillier and Simon Shu offer clues in their 2003 paper, “Do Burglars Understand Defensible Space?”

We see a clear tendency for burglaries to be less frequent on the most integrated lines, and more frequent on the segregated lines. This was confirmed by statistical analysis, and shown to be statistically ‘significant’. Similar results were found in two housing estate areas…

[In Figure 2] we see a marked tendency for burglary to occur in the deeper parts of cul-de-sacs, rather than in the ‘shallow’ parts that are directly visible from the nearby through street. If we then look at the pattern in the top left quarter of the map, we see again that burglary is found not on the first line of sight into the cul-de-sac system, but in the deeper parts, and also on the footpaths which link the cul-de-sacs. Looking to the right side of the map, we see that the burglaries that occur on dwellings with through street addresses are mostly accessed through back alleys, or long driveways which conceal the house from the street.

…The main curving residential streets [in Figure 4], which have greater linearity and integration, and are lined on both sides with dwellings whose entrances can see each other (we say such spaces are ‘continuously constituted’ by dwelling entrances, and that the houses have good ‘intervisibility’) are completely free from both burglary and car crime. Once again we see that crime migrates to those parts of the layout where space is visually broken up, and with least potential movement (Figure 5). Some, but not all, cul-de-sacs and footpaths are particularly at risk, mainly those where space is relatively segregated. Cul-de-sacs which are more linear and ‘well constituted’, are safer…

…The evidence we have so far suggests we should move on from the universal cul-de-sac, with through streets only as a necessary evil – a layout with frightening implications for the future of the public realm of our towns and cities – and go for integrated and ‘everywhere constituted’ street and road networks, with constituted linear cul-de-sacs directly linked to the through streets for the sake of variety and choice. We must begin to design the connecting tissue of our cities again, and populate it with those who choose its lifestyle.

…In remarkably interesting study, Tim Pascoe of the BRE asked burglars which type of space they preferred as targets. Many, it turns out, liked small cul-de-sacs, especially if they were visually broken up…

Laurence Aurbach scrutinizes cul-de-sacs in “Connectivity Part 5: Neighborhood Crime” (2007):

Researchers look at the configuration of a cul-de-sac, the placement of homes within it, and its connection to the larger-area street network. Those are some of the factors that make a difference in crime rates.

In general, the hot spots of crime are the locations with low pedestrian traffic and low visibility of homes and entrances. Hidden or partly visible homes, on long, curvy cul-de-sacs that are part of a dendritic (i.e., “tree-like”) network of thoroughfares, have the highest crime rates.

Conversely, the safest locations are on well-connected streets with plenty of foot traffic and many highly visible dwellings. The safest cul-de-sacs are short and straight, with many highly visible dwellings, and connect directly to through streets…

Segregated footpaths that connect cul-de-sacs — the classic Garden City formula — can be highly vulnerable to crime if they are secluded…

Aurbach quotes from Hillier’s 2004 paper, “Can Streets Be Made Safe?”

At the level of the overall layout, we can say, fairly unambiguously, that reasonably regular street layouts with fairly large blocks (to structure movement and reduce unnecessary permeability) are best… If such a layout is then interspersed with simple linear cul-de-sacs directly attached to the through street, then the cul-de-sacs may well be the most secure parts of the layout — but only if the street system is there in the first place to keep the cul-de-sacs simple and linear.

So a layout works as a whole. We cannot isolate elements and say that this is good and that is bad. It all depends on how the elements are put together in themselves and how they are combined to form the overall layout. Although pickpockets need busy streets, and muggers locations where integration turns to segregation so that victims are available one at a time, it is clear that what burglars — and to a lesser extent car criminals — need is secluded access. The less we provide it either by breaking up layouts into poorly used, low visibility public spaces, or creating secluded secondary access to premises, then the more difficult the burglar’s job will be…
…there are no burglaries on the first lines of sight into cul-de-sac complexes from the through roads. The burglaries are dispersed, but are usually found in the deep parts of cul-de-sacs, and most of all at the end of the cul-de-sac…

An article by Hillier for Planning in London (PDF, 2004) adds this insight:

In this area, we can see that in each and every case, the burglar gained access to the dwelling not from the cul-de-sac itself, but from the network of footpaths that surrounded the dwellings at the back and side. The lesson is then about secondary access to premises through footpaths, not about cul-de-sacs.

Based on the foregoing, Northern Avenue has several aspects that likely improve its safety:

  • It is linear
  • The homes are well-integrated with good intervisibility
  • It is well-connected to a main road (North Street)
  • You can stand on North Street and see down to the end of Northern Avenue
  • Access to the rear of homes on Northern Avenue is relatively restricted
  • Homes line both sides of the street

By contrast, the cul-de-sacs in Kohl’s latest condo proposal give reason for concern:

  • The roads would not be straight
  • The space would be visually broken up
  • The homes would be isolated from North Street
  • Many units would be difficult or impossible to see from North Street
  • Footpaths (shown in pink) and the woods would give easy secondary access to the units
  • Homes would only be present on one side of the street

In fairness to Kohl, the risk of burglary to the condos would probably be offset somewhat by the fact they are grouped into units of 2-5. This is not a unique advantage over Northern Avenue, however, as two-family homes are prevalent there and presumably confer a similar increase in security. Condo associations do present special risks, however, especially in economic downturns. Empty units can lead to a budget crunch for the association. Pressure to generate income from units can induce landlords to rent to disruptive tenants. Common spaces and infrastructure, such as stormwater basins, may be neglected because responsibility is diffused and there is a general desire to keep dues low.

Bottom line, the proposed road layout in Kohl condo proposal “D” presents new reasons to be concerned about this project. It raises security issues and reinforces its disconnection and disharmony with the surrounding neighborhood. It is easy to imagine that neighbors would feel uncomfortable walking through the roads and paths of the development. Instead of public ways, these would feel like private spaces.
